ISOApproval Module TM
An ISO9000 Document Control Management Module
Create Multiple Levels of Approval for Controlling Release of your DNC Files, Documents & Packets
Part of an Integrated Family of ShopFloorManagerTM EventAwareTM Modules
Supports Windows 10TM & Windows 8TM including Support for Terminal Server 2008/2010/2012

ISOApprovalTM Module supports Creating and Establishing Multi-Level ISO9000 Approval Criteria for Controlling Approval and Release of all of your Files, Documents & Packets into Production.

This includes: Establishing Birth and Death Dates; Multi-Level Sign-Off and Approval States, Controlled Check-Out/Check-In of All Files/Documents/Packets using ShopFloorManagerTM or a Third-Part Application; Automatic Archiving and Complete Histories of Active, Deleted and or old Files/Documents/Packets

ISOApproval an Integrated ISO9000 ShopFloorManager Module

The Keys to managing your Documents, Files & Packets are to make sure they are up to Date, Signed-Off and Approved by Designated Personnel including release dates. Meet the ISO Standards your customers require!

Standard

ISOApproval
Basics

ISOApproval Basics Include:
  • EventAwareTM (Next Stage Approval Real-Time User Notification)
  • Create any number ISO Sign-Off States
  • Assign any number of User Groups to each Sign-Off State
  • Create any number of ISO Flow Charts
  • Assign any number of ISO Sign-Off States to a Flow Chart
  • Configure each Sign-Off State in a Flow Chart by selecting & ordering Approvers
  • Assign a Flow Chart to a DNC File, Document or Packet with Final Settings
  • Create On-The-Fly Flow Chart/Sign-Off States for one-offs
  • Select & Assign Flow Charts from List or existing instanced Flow Charts
  • Real-Time Approval & Sign-Off Reminders

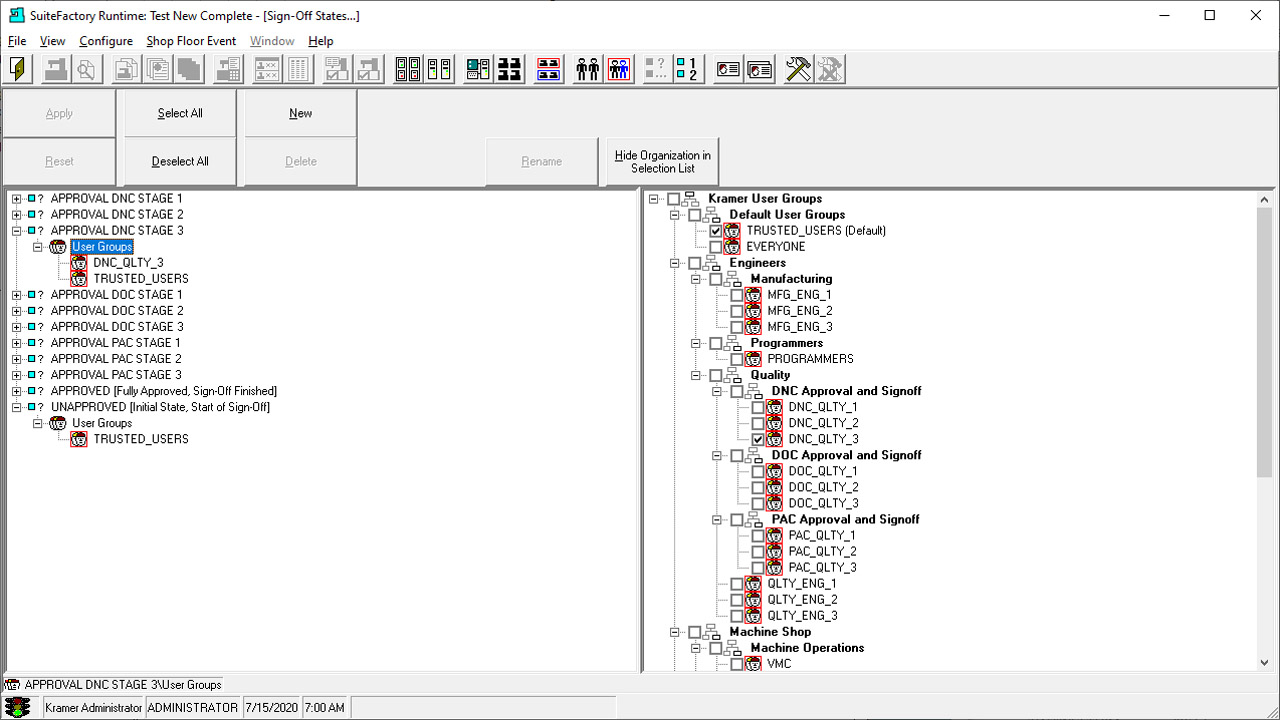

Sign-Off
States

ISOApproval Create Sign-Off States:
  • You can create as many Individual ISO Sign-Off States as Required
  • You assign to each ISO Sign-Off State one or more User Group(s)
Note

Sign-Off States can have one or more of it's Users or User Groups play the Role(s) of "Document" Approvers.

Examples of Sign-Off States:
  • Development (3 Sign-Off Users)
  • Tryout(3 Sign-Off User Groups)
  • Pre-Production(2 Sign-Off Users and 2 Sign-Off User Groups)
  • ,Etc.!

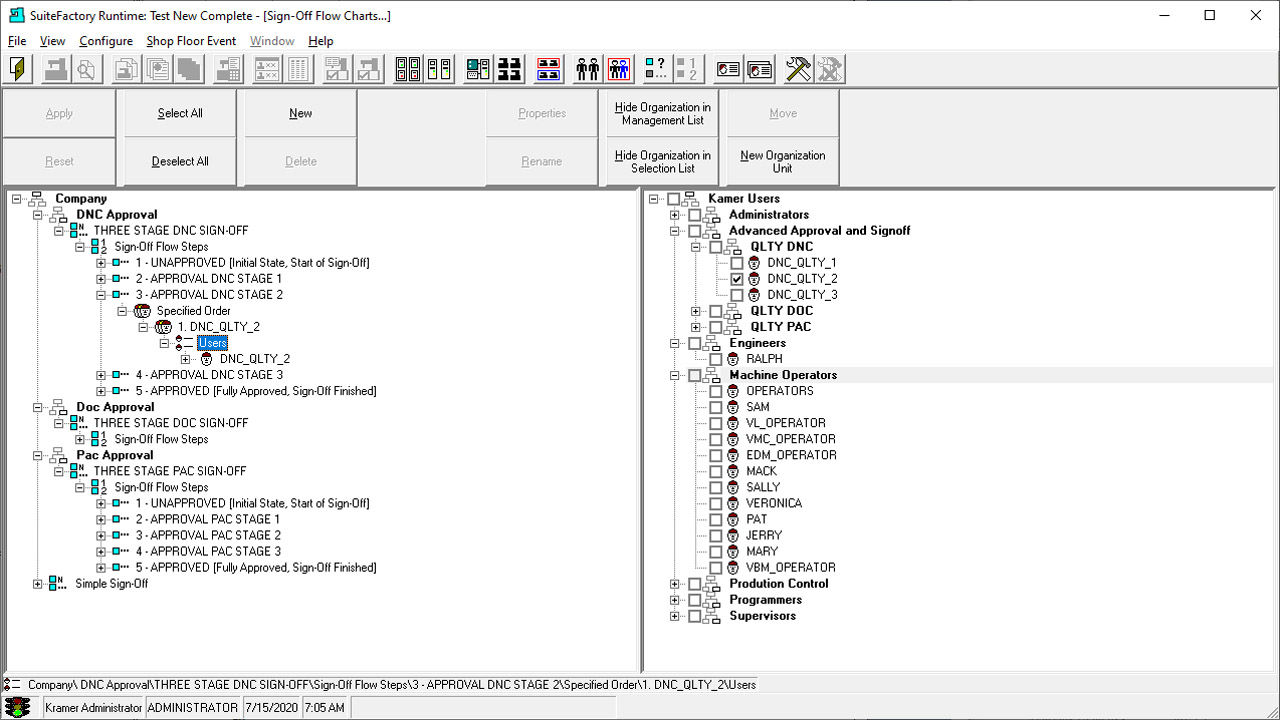

Sign-Off
Flow Charts

ISOApprovalTM Create Sign-Off Flow Charts:
  • You can create as many Individual ISO Flow Charts as Required
  • You can assign as many Individual Sign-Off States as Required for each Flow Chart
  • You can configure each Sign-Off State by selecting Approver(s)
  • You can have the Approvers in a set order or random
Note

At this stage you have created the Flow Charts which are the Entities that get assigned to DNC Files, Documents or Packets. Before a DNC File, Document or Packet is Approved for Production each Sign-Off State needs individual Approval.

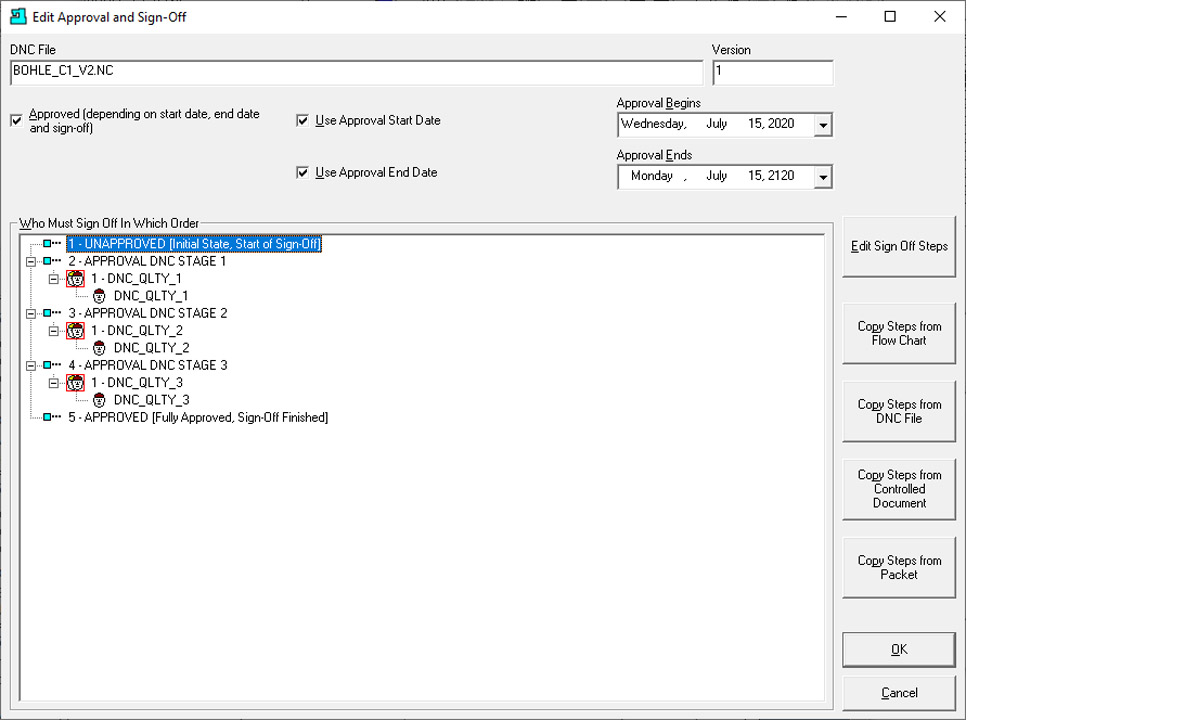

Assigning
Sign-Off
Flow Charts

ISOApprovalTM Assigning Flow Charts:
  • Select a DNC File, Document or Packet
  • Select a Flow Chart from: Controlled Documents, DNC Files, Packets or Flow Charts
  • Select a Specific Flow Chart from one of the Lists
  • Optionally create & assign On-The-Fly Flow Charts for one-offs
Note

At this stage you have Assigned a Flow Chart to a DNC File, Document or Packet. Before this DNC File, Document or Packet can be Approved each Sign-Off State needs to be individually Approved.

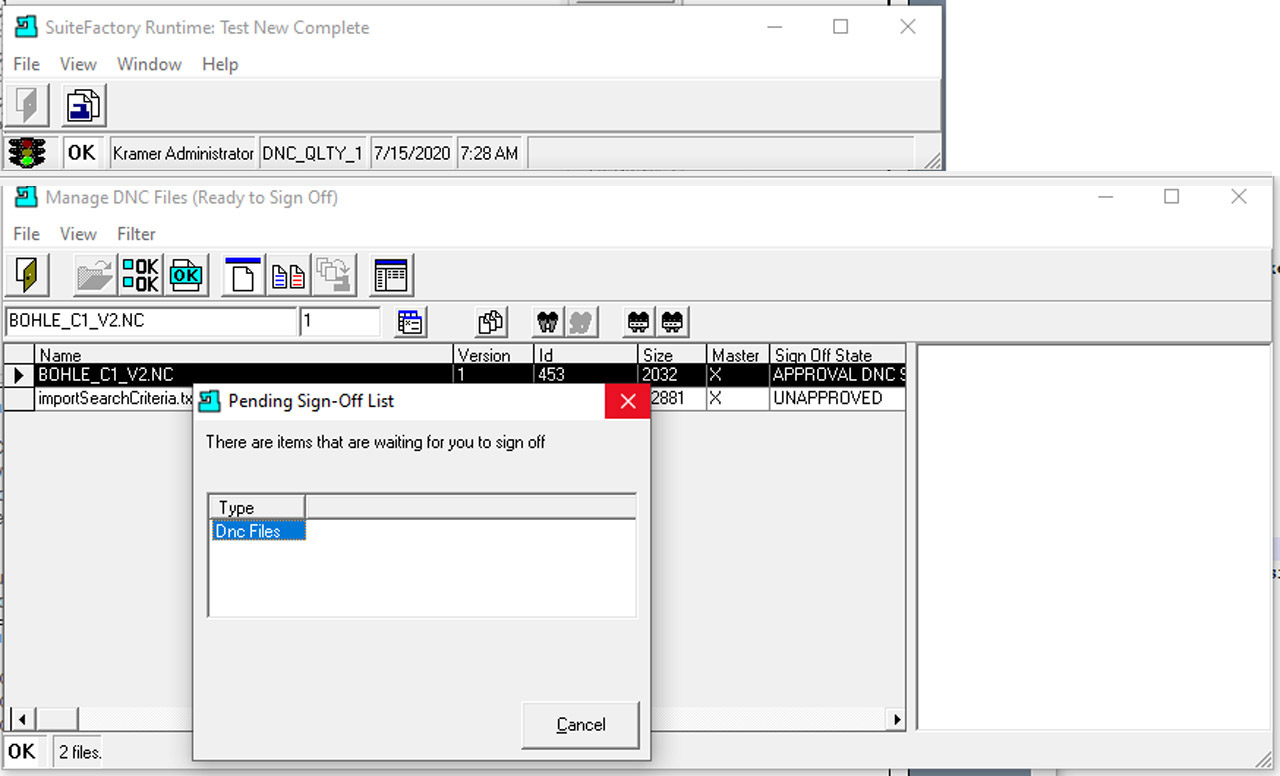

Automatic
Reminder

ISOApprovalTM Reminds User(s) of Files Waiting for Approval:
  • Users notified when DNC Files need Approval
  • Users notified when Documents need Approval
  • Users notified when Packets need Approval
Note

ISOApprovalTM allows a particular User or any User in a User Group to Sign-Off & Approve Files waiting for approval for that User Group/Sign-Off State. It only reminds them when it's their turn to Sign-Off these Files, Documents and or Packets.

How
It Works

ISOApprovalTM How it Works

In essence using the ISOApproval methodology requires that a "File" traverses a list of Sign-Off States which individually need to be approved before that "File" is fully Approved for "Production".

As the UnApproved "File" traverses the Sign-Off States a User can only access the "File" associated with a particular Sign-Off State if it is in a Pending Approval State. Once it has been approved for that Sign-Off State a User can no longer access that "File" in that Sign-Off State.

By placing Users in the Appropriate User Group/Sign-Off State Combinations you have full control over who can access Unapproved "Files".
